2006 Triumph Daytona 675 |
|
Back to Index | |

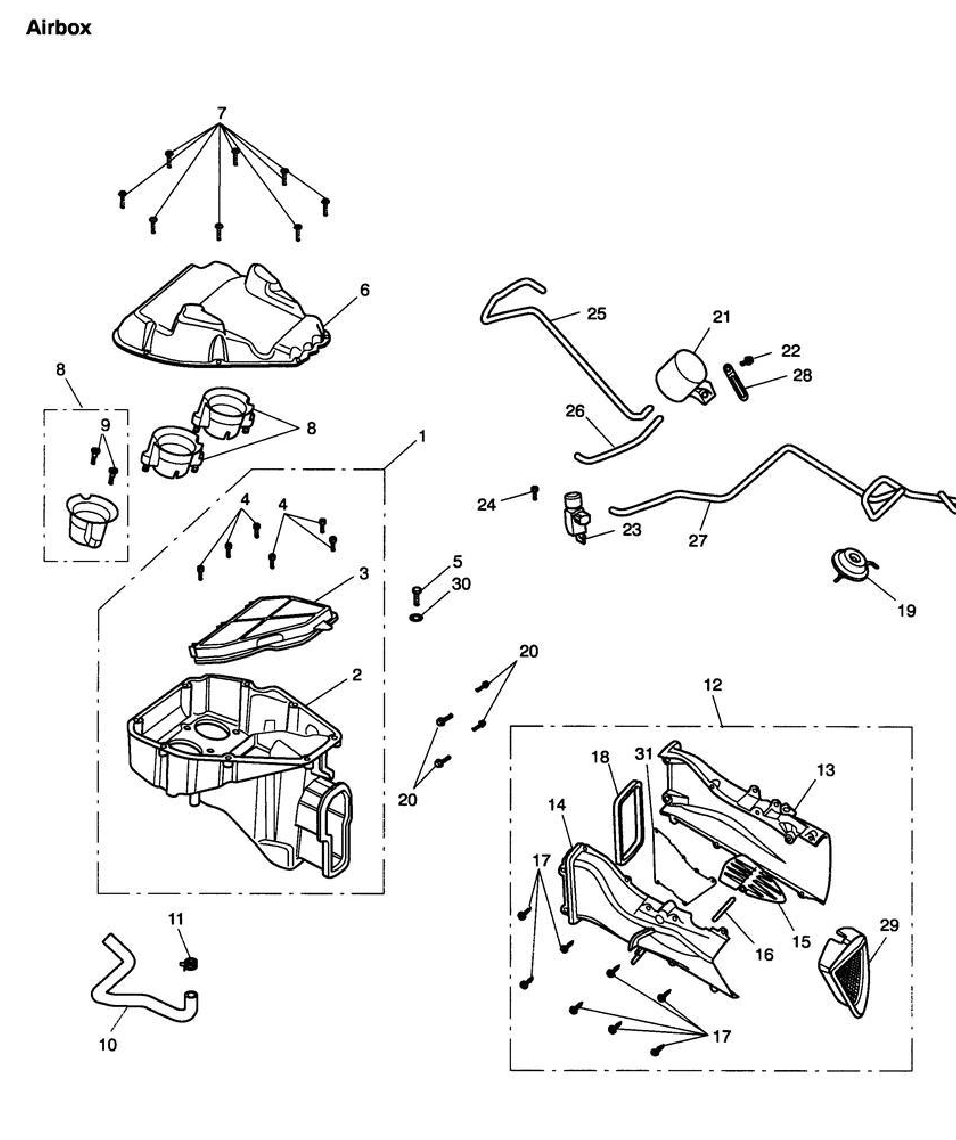

1: AIRBOX
ASSEMBLY,LOWER
5571284-001
2: SHELL, AIRBOX,
LOWER
5571287-001
3: FILTER, AIR
5571289-001
3: AIRFILTER
MULTIPACK
5571290-001
4: SCREW, BUTTON
HEAD, M5 X 10
5576348-001
5: BOLT, M6 X 20
5576133-001
6: AIRBOX ASSY,
UPPER
5571291-001
7: SCREW, HEX HEAD,
50.16
5576328-001
8: INTAKE TRUMPET,
ASSEMBLY
5571278-001
9: SCREW, PAN,
SOULDERED, M5X0.8
5576326-001
10: BREATHER HOSE,
CRANKCASE
5570803-001
11: CLIP, BREATHER
PIPE
5577066-001
12: INTAKE DUCT,
ASSEMBLY
5570863-001
13: MOULDING, DUCT,
LHS
5570864-001
14: MOULDING, DUCT,
RHS
5570865-001
15: FLAP, INTAKE
5570866-001
16: SPINDLE, FLAP
5570867-001
17: SCREW, SELF TAP,
10X1.6X20
5576325-001
18: SEAL, FOAM,
HEADSTOCK
5570868-001
19: DIAPHRAGM,
VACUUM
5570869-001
20: BOLT,HHF,M6 X
20,S/S
5576451-001
21: TANK VACUUM
RESERVOIR
5570874-001
22: BOLT,M6X1X20
5576123-001
23: SOLENOID,VACUUM
5570870-001
24: SCREW, SKT.
HEAD, M5X8 BLK.
5576373-001
25:
HOSE,FORMED,RESERVOIR
5570871-001
26:
HOSE,FORMED,SOLENOID
5570872-001
27: HOSE,DIAPHRAGM
5570873-001
28: CLIP HARNESS
5577147-001
29: SEAL, FRONT DUCT
5570861-001
30: WASHER, M6 X 19,
OD
5576693-001
31: STIFFENING
PLATE, INTAKE DUCT
5570941-001
|
|
