2006 Triumph Daytona 675

Back to Index

Motoman's Madness

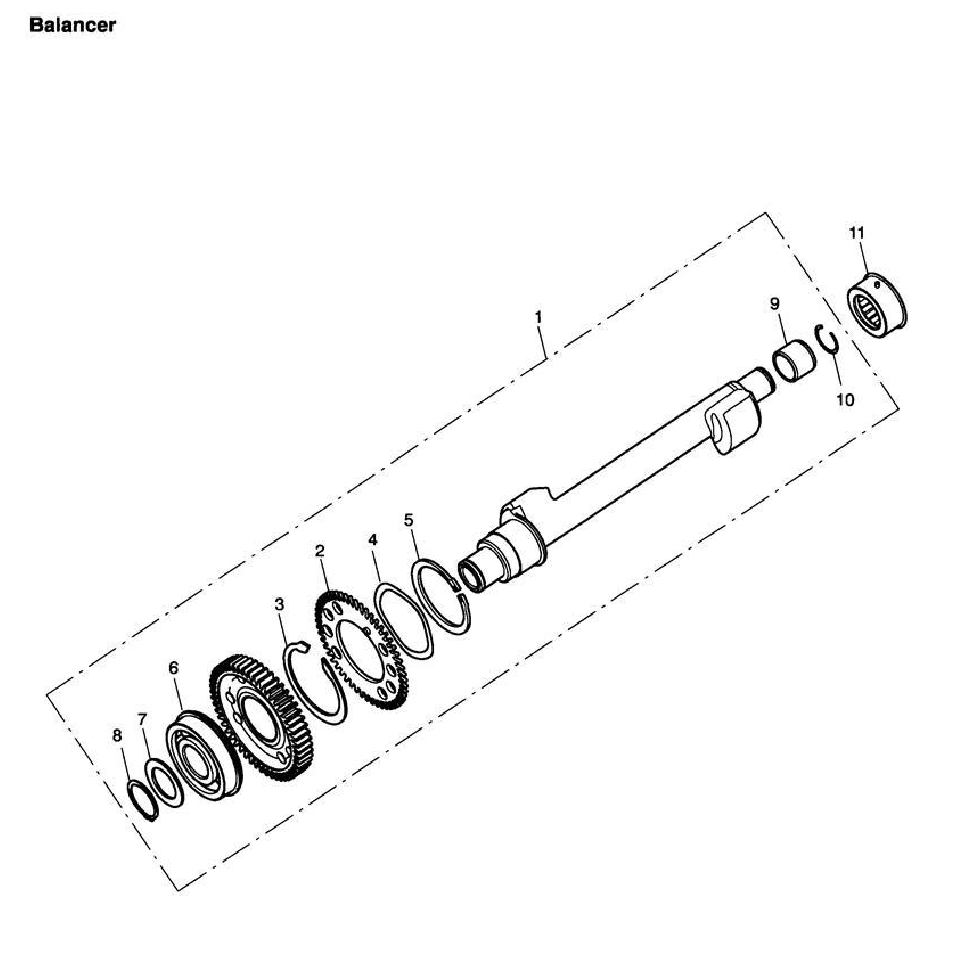

1: BALANCER SHAFT, ASSY
5566296-001
 2: GEAR, PRIMARY BALANCER,B''LASH
5566297-001
 3: SPRING,PRIMARY BALANCER,B''LASH
5566310-001
 4:WASHER,WAVE,62OD52 ID
5576793-001
 5: CIRCLIP
5576646-001
 6:BEARING,BALL,25X62X17
5577194-001
 7: WASHER, THRUST
5557042-001
 8: CIRCLIP
5567406-001
 9: INNER RING
5577205-001
 10: CIRCLIP
5576647-001
 11: BEARING, NEEDLE, 40X24X20
5577186-001
