2006 Triumph Daytona 675

Back to Index

Motoman's Madness

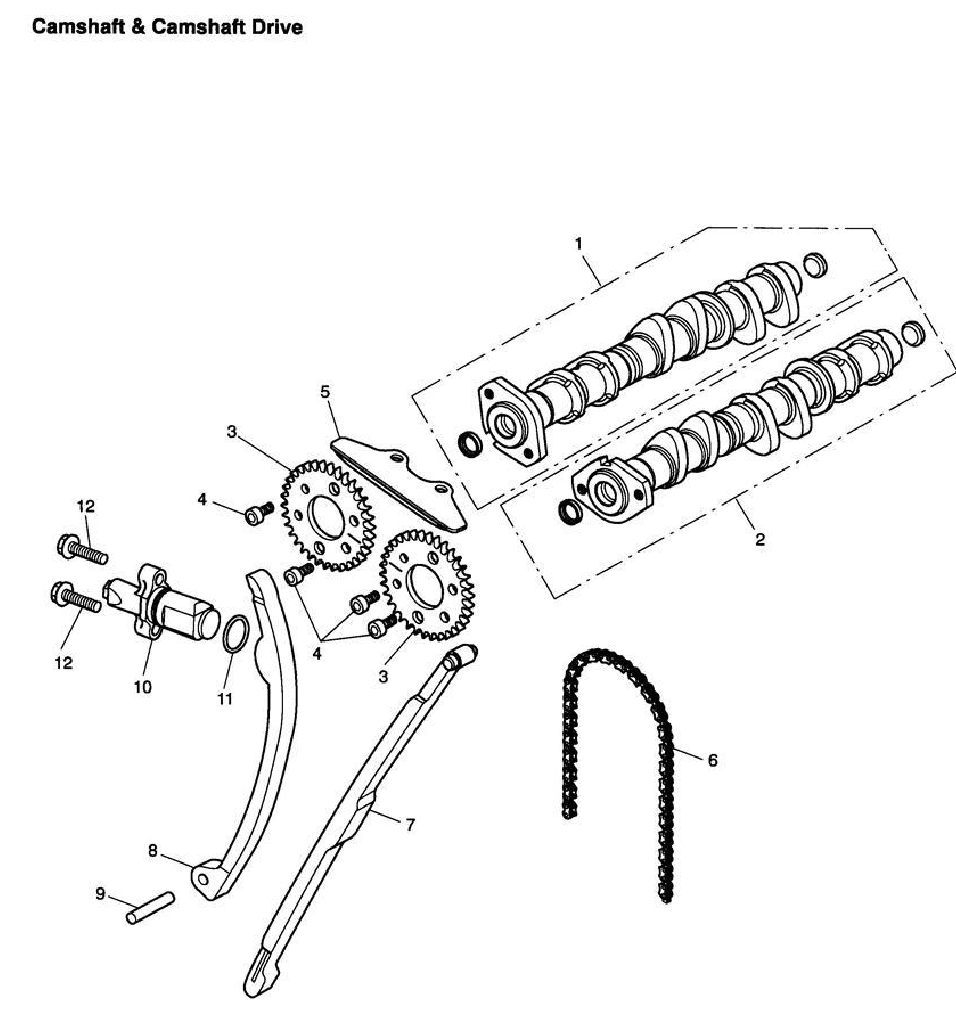

1: CAMSHAFT ASSY, INLET, 3 CYL
5565434-001
 2: CAMSHAFT ASSY, EXHAUST, 3 CYL
5565435-001
 3: SPROCKET,CAMSHAFT,34T
5565496-001
 4: CAPSCREW, M6 X 10
5575875-001
 5: TOP PAD, CAMCHAIN
5565449-001
 6: CHAIN, CAM, 126 LINKS
5565469-001
 7: BLADE, RUBBING, CAMCHAIN
5565430-001
 8: BLADE, TENSIONER, CAMCHAIN
5565429-001
 9: DOWEL,TENSIONER
5565497-001
 10: TENSIONER, CAMCHAIN
5565447-001
 11: O RING,ID 2.0,70 SHORE
5576910-001
 12: BOLT,HHF,M6X1.0X20,S/S
5576450-001
