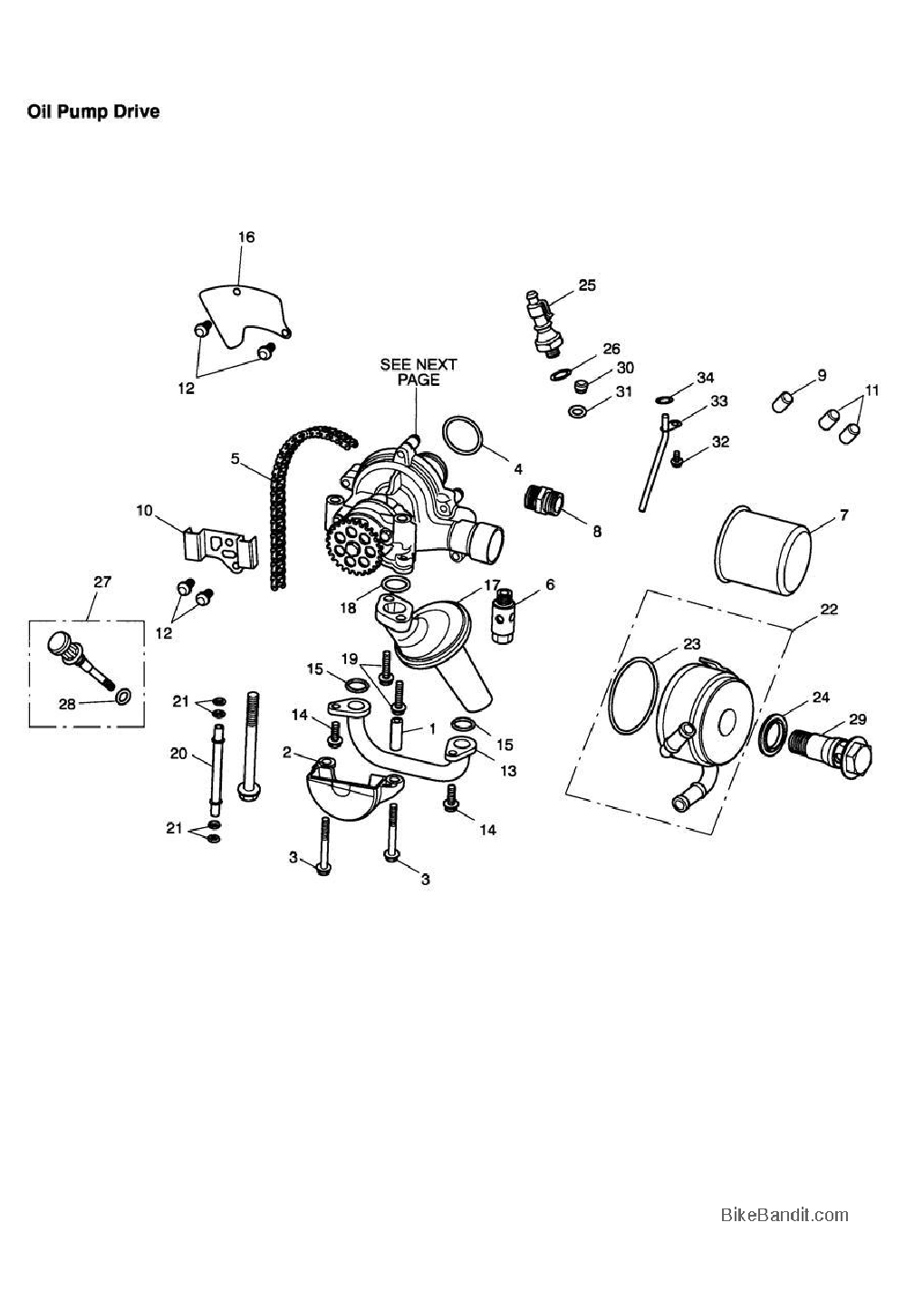

2006 Triumph Daytona 675 |
|
Back to Index | |
1: DOWELL,
HOLLOW, 8 X 30MM
5575748-001
2: GUARD,AUX
DRIVE CHAIN
5566367-001
3:
BOLT,RHHFM6X1.0X50-RAW
5576136-001
4: O-RING
5576883-001
5: CHAIN, 6.35
PITCH, 74 LINK
5566365-001
6: VALVE,
PRESSURE RELIEF
5566345-001
7: OIL FILTER
MULTIPACK (25)
5566385-001
7: OIL FILTER
MULTIPACK (50)
5566386-001
7: OIL FILTER
5566387-001
8: ADAPTER, OIL
FILTER
5566412-001
9: SLEEVE, OIL
JET, PISTON, 1.2MM
5566458-001
10: SLEEVE. OIL
JET, PISTON
5566457-001
11: RETAINER
PLATE,AUX.DRIVE CHAIN
5566324-001
12: SCREW, TORX
PH M6 x 12, RAW
5576239-001
13: PIPE, OIL
FEED
5566368-001
14:
BOLT,RHHF,M6X20,BLK,ENCAPS
5576140-001
15: O RING, 16 X
2.0
5576909-001
16:
PLATE,BAFFLE,BREATHER
5566369-001
17: PICK-UP, OIL
5566370-001
18: O-RING ID
20.29X2.62
5576886-001
19:
BOLT,RHHF,M6X25 BLK,ENCAPS
5576141-001
20: DRAIN TUBE,
PUMP
5566371-001
21: O-RING ID5.6
X 2.2
5576874-001
22: HEAT
EXCHANGER,STEEL,9 ROW
5566376-001
23:
O''RING,59.5X3.0
5576922-001
24: SEAL,HEAT
EXCHANGER
5566378-001
25: PRESSURE
SWITCH, OIL
5566355-001
26: WASHER, M10,
COPPER
5576682-001
27: DIPSTICK,
OIL LEVEL
5566373-001
28: O RING, OIL
DIPSTICK
5566375-001
29: BOLT,HEAT
EXCHANGER
5566379-001
30:
RESTRICTOR,OIL,GEARBOX
5566323-001
31: O-RING, ID.
7.1 X 1.6
5576882-001
33: PIPE, DRAIN,
OIL
5566381-001
34: O RING
5576897-001
|
|
