Chevy Disc Brake Conversion for Early Broncos D44, D30

I finally scrounged up enough parts to do the Che*y disk brake conversion.  I based my parts search on the technical write up at http://www.bronco.com/tech/upgrades/disc_brakes/index.html   The hard parts to find were the banjo bolts & caliper pins. After seeing Quinnīs luck at http://www.autozone.com/ for the loaded calipers, I tried to order most of the parts on line through them.  After two hours fumbling on their website, I gave up and took the price list that I printed out and went to Checkerīs and order all the parts through them.  Of course all their prices were higher, but they have a match plus 5% policy.  SO I ended up getting 5% extra off of Autozoneīs website prices.  Here is a quick parts list and part numbers for the purchased items and the vehicle type I used:

Installation Procedures Click here!

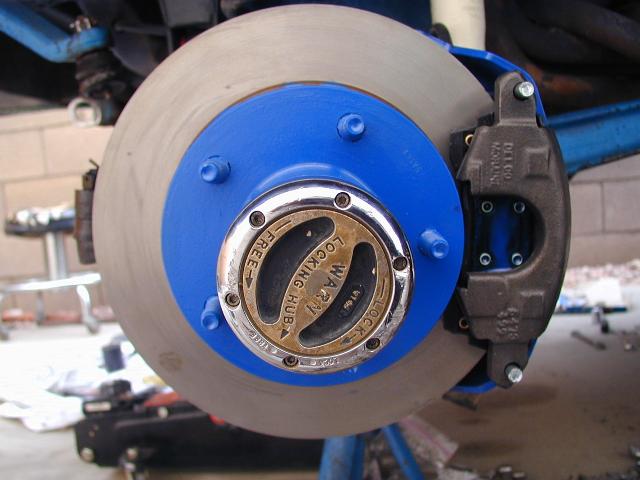

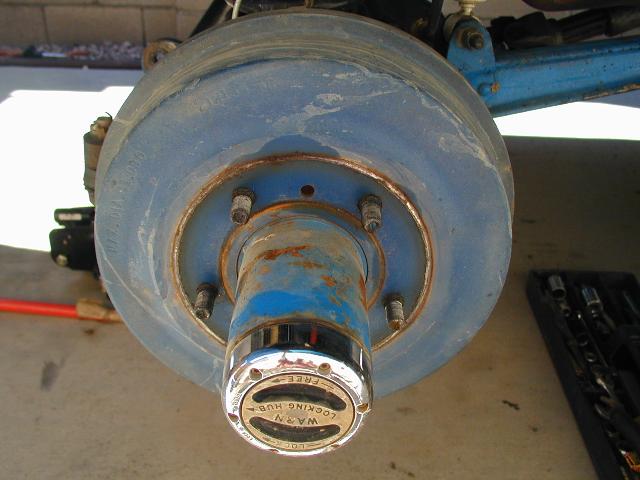

tn_brakeparts06_jpg This is the factory setup for a 1973 Ford Bronco.   This is the final product after the Che*y disc brake conversion. tn_brakeparts28

Please note:  All parts were from Checker Auto Parts unless otherwise noted !!!!

1974 Che*y Blazer, 4WD, 350 CID, 4BBL(`72-76 will work)

tn_brakeparts02_jpg

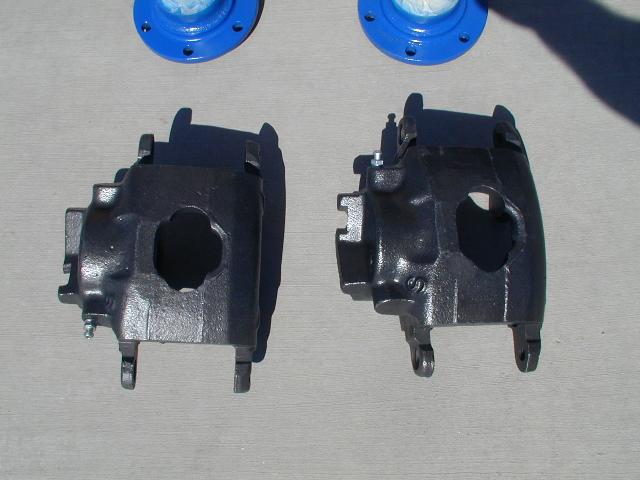

Caliper

18-4046

$11.99



Caliper

18-4045

$11.99



tn_brakeparts07_jpg

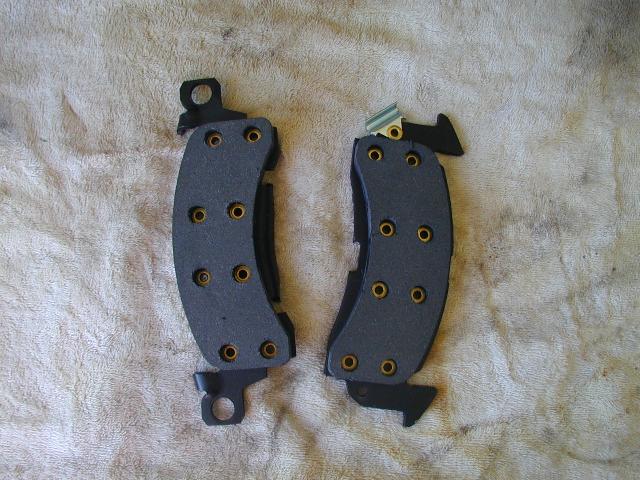

Brake Pads

RRD52/D52

$10.99

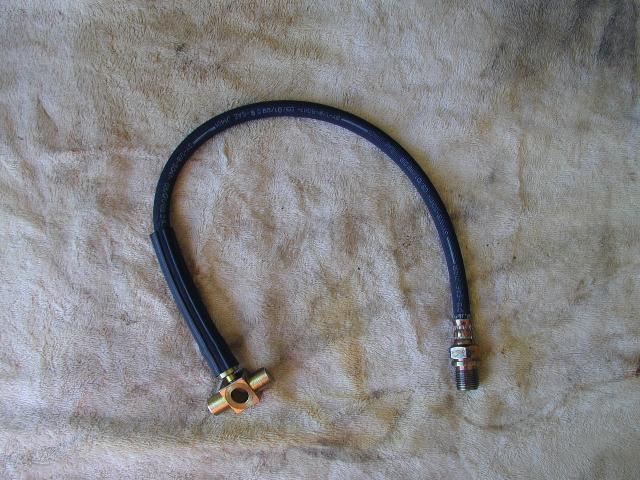

tn_brakeparts08_jpg

Brake Hose x 2

77028

$20.89 ea

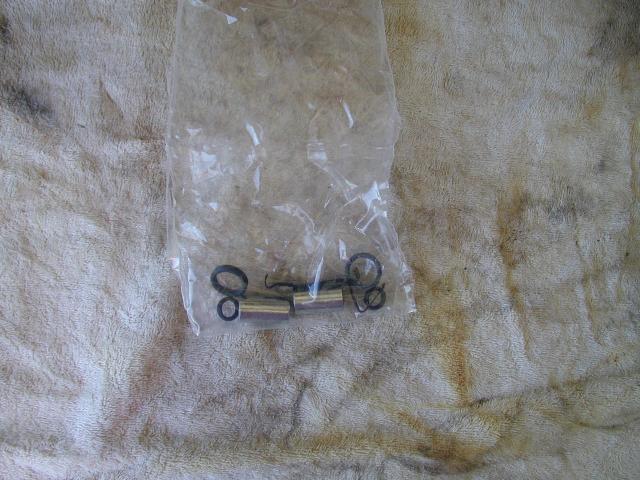

tn_brakeparts14_jpg

Brake Hardware Kit x 2

H5501

$2.85 ea



tn_brakeparts09_jpg

Spindle Bearing Kit x2

BK1

$13.49 ea

Todd Zuercher

tn_brakeparts04_jpgtn_brakeparts03_jpg

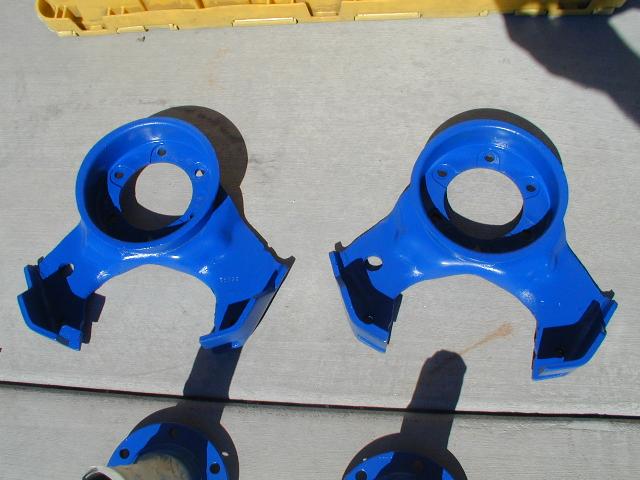

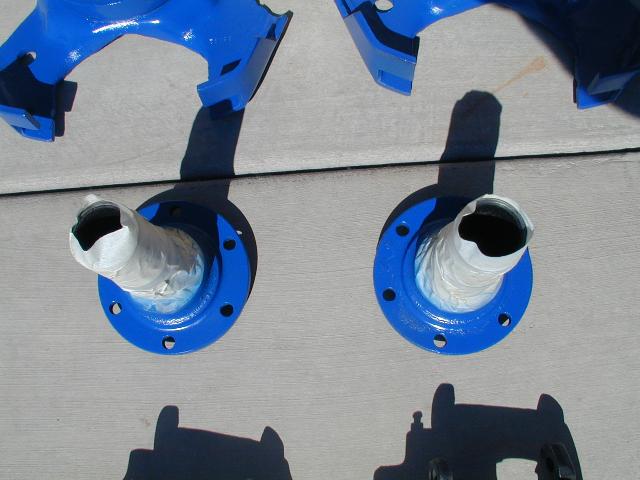

Spindles / Backing plates

Used

Negotiable

(Pep Boys)



Banjo Bolts

7/16-20x1-1/16

$2.99 ea

(NAPA)



Caliper Bolts x 4

82204

$7.99 ea



1976 F250, 2WD, 390 CID, Camper Special, Dual Caliper

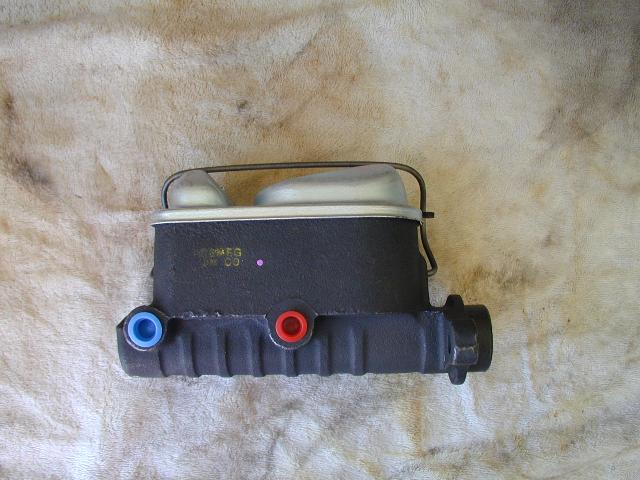

tn_brakeparts13_jpg

Master Cylinder

10-1638

$15.49



1985 Bronco Fullsize (`76 - `85 will work) (JustTrucks Salvage, Phoenix, AZ)

tn_brakeparts05_jpg

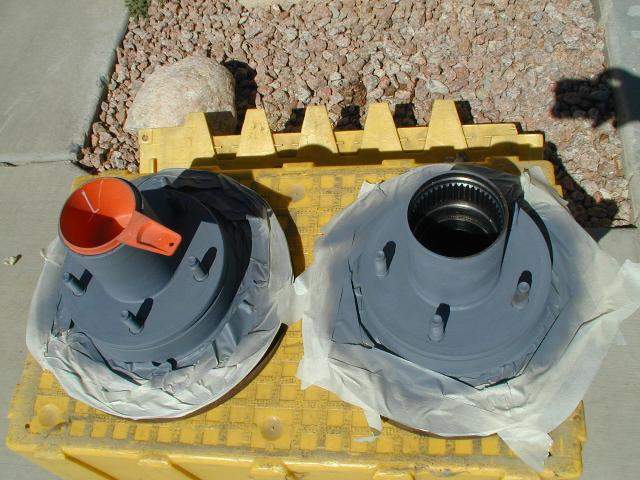

Hub / Rotor

Used

$45.00 ea



1978 F150, 351CID, 4x4

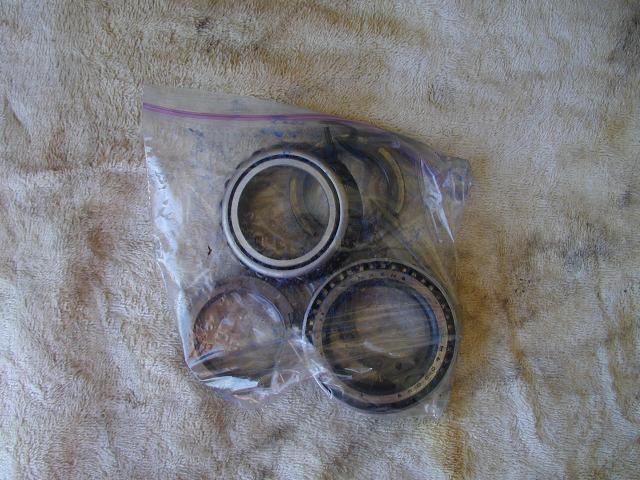

tn_brakeparts10_jpg

Inner Hub Bearing x2

BR37

$9.99 ea



Outer Hub Bearing x2

BR35

$9.99 ea



tn_brakeparts11_jpg

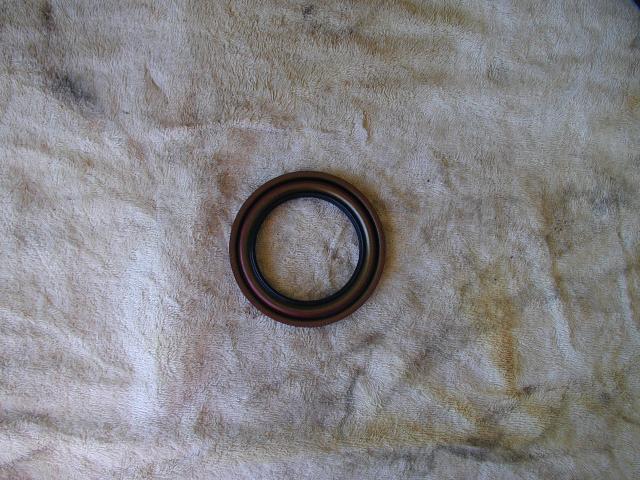

Hub Seal x2

4250

$3.99 ea











Additional Cost:   Rotors Turned Pep Boys $6.00 ea
